Model | Image | Sensitivity | Weight | Temperature Range |
---|---|---|---|---|
General Purpose Triaxial IEPE Accelerometers | ||||
AT/14 | 1mV/g up to 200mV/g | 13-16.6gm | -55°C to 125°C | |
AT/15 | 1mV/g up to 200mV/g | 14.1gm | -55°C to 125°C | |

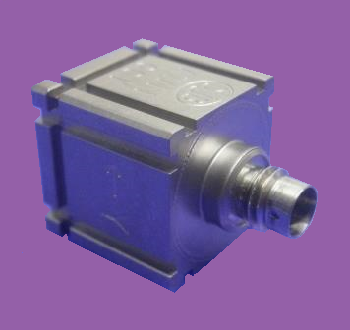

AT/11 | 1mV/g up to 100mV/g | 18.9gm | -50°C to 125°C | |

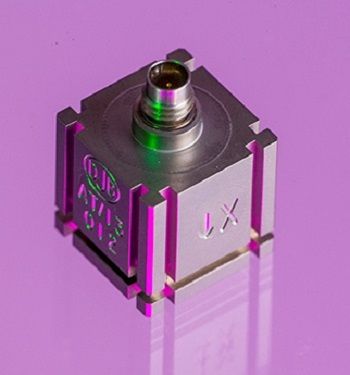

AT/13 | 1mV/g up to 200mV/g | 25.9gm | -50°C to 125°C | |

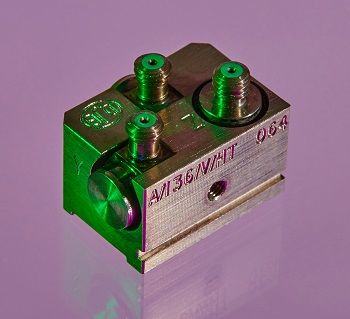

A/136 | 1mV/g up to 200mV/g | 24.9gm | -50°C to 125°C | |

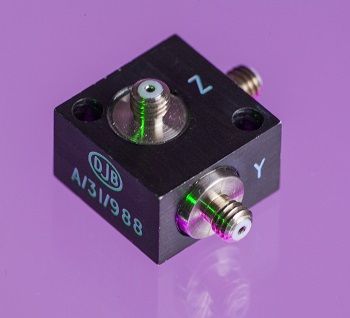

A/131 | 10mV/g up to 500mV/g | 19gm | -50°C to 125°C | |

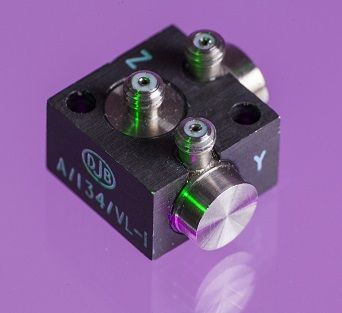

A/134 | 1mV/g up to 200mV/g | 19-22gm | -50°C to 125°C | |

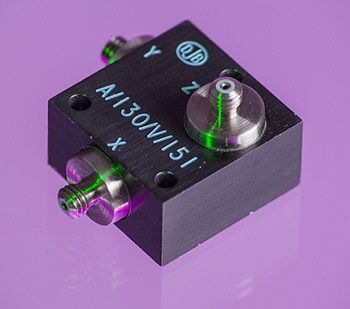

A/130 | 10mV/g up to 500mV/g | 40.9gm | -50°C to 125°C |
Model | Image | Sensitivity | Weight | Temperature Range |
---|---|---|---|---|
Miniature Triaxial IEPE Accelerometers | ||||

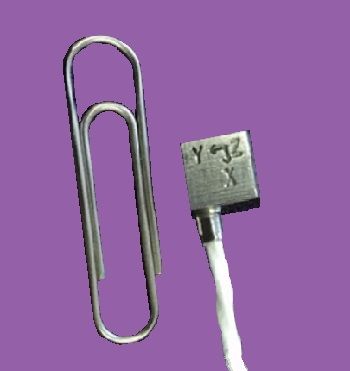

AT/18 | 1mV/g up to 10mV/g | 1.2gm | -50°C to 200°C Max Temp | |

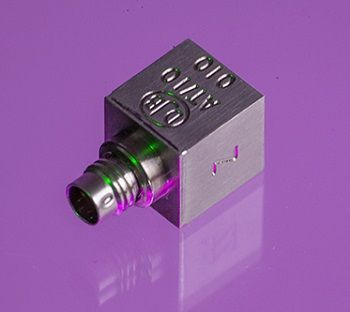

AT/10 | 1mV/g up to 100mV/g | 6.9gm | -50°C to 125°C |
Model | Image | Sensitivity | Weight | Temperature Range |
---|---|---|---|---|
High Temperature Triaxial IEPE Accelerometers | ||||

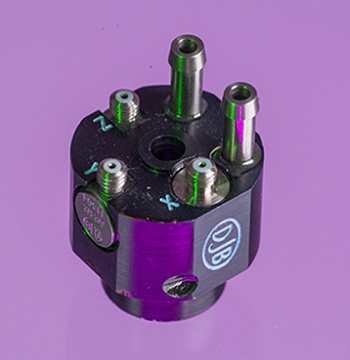

A/133/V-3 – Flat base; A/133/V-10 Raised base | 1mV/g up to 250mV/g | 38gm/46gm | -50°C to 900°C Max Temp WITH WATER FLOW |
