TEK EKSENLİ IEPE İVMEÖLÇERLER

Kapat

Model	Image	Sensitivity	Weight	Temperature Range
Miniature IEPE Accelerometers
A/128/V		1mV/g up to 10mV/g (±10%)	0.19gm	-50°C to 200°C Max. Temp.
A/127/V		1mV/g up to 100mV/g (±10%)	1.4gm	-50°C to 125°C
A/124/E		1mV/g up to 200mV/g (±10%)	2gm	-55°C to 125°C

Model	Image	Sensitivity	Weight	Temperature Range
General Purpose IEPE Accelerometers
A/123/E		1mV/g up to 250mV/g (±10%)	3.4-5.2gm	-55°C to 125°C
A/122/V		10mV/g up to 500mV/g (±10%)	12gm	-55°C to 125°C
A/120/V		10mV/g up to 1V/g (±10%)	12.5-27gm	-55°C to 125°C
A/123/B		1mV/g up to 250mV/g (±10%)	4.8grams	-55°C to 125°C
A/123/BT		1mV/g up to 250mV/g (±10%)	4.8grams	-55°C to 125°C

Model	Image	Sensitivity	Weight	Temperature Range
DJB Impedance Head
AF/100/10		100mV/g, 10mV/N	30grams	-40°C to 121°C
AF/50/5		50mV/g 5mV/N	30gm	-40°C to 121°C

Model	Image	Sensitivity	Weight	Temperature Range
High Sensitivity IEPE Accelerometers
A/121/V		100mV/g up to 3V/g (±10%)	90gm	-50°C to 125°C

Model


Sensitivity

Weight

Temperature Range

Seismic Micro G IEPE Accelerometers

1V/g up to 5V/g (±10%)

114.5gm

-50°C to 125°C

10V/g (±10%)

400-429gm

-50°C to 125°C

Model	Image	Sensitivity	Weight	Temperature Range
Calibration Reference IEPE Accelerometer
A/120/CR		10mV/g or 100mV/g (±10%)	24gm	-50°C to 125°C

Model	Image	Sensitivity	Weight	Temperature Range

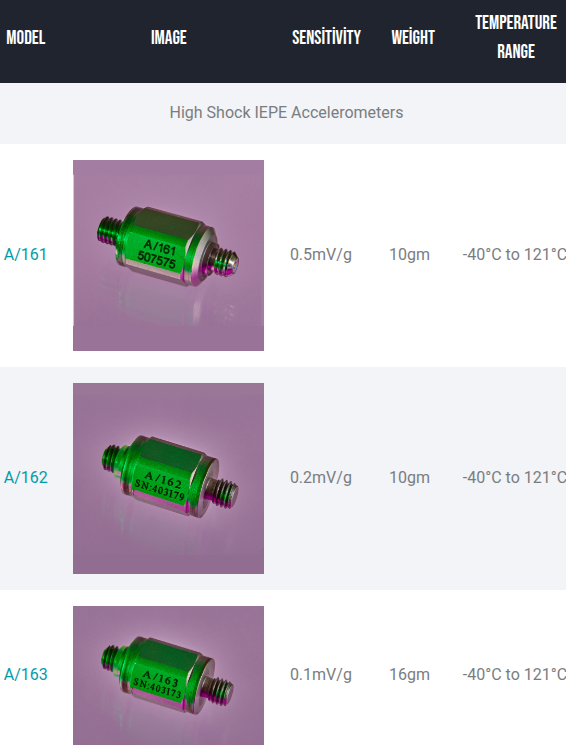

High Shock IEPE Accelerometers
A/161		0.5mV/g	10gm	-40°C to 121°C
A/162		0.2mV/g	10gm	-40°C to 121°C
A/163		0.1mV/g	16gm	-40°C to 121°C

Model	Image	Sensitivity	Weight	Temperature Range
Low Cost Industrial IEPE Accelerometers
A/140		100mV/g (±10%)	85gm	-50°C to 120°C
A/140/SC		100mV/g (±10%)	149gm	-50°C to 120°C
A/140/C		100mV/g (±10%)	99gm	-50°C to 120°C
