| Model | Image | Sensitivity | Weight | Temperature Range |
|---|---|---|---|---|
| Miniature Charge Accelerometers | ||||
| A/28/E |  | 0.4pC/g nom. | 0.19gm | -50°C to 200°C Max Temp |
| A/27/E |  | 2pC/g nom. | 1.4gm | -50°C to 200°C Max Temp |
| A/24/E |  | 5pC/g nom. | 2gm | -55°C to 250°C Max Temp |
| Model | Image | Sensitivity | Weight | Temperature Range |
|---|---|---|---|---|

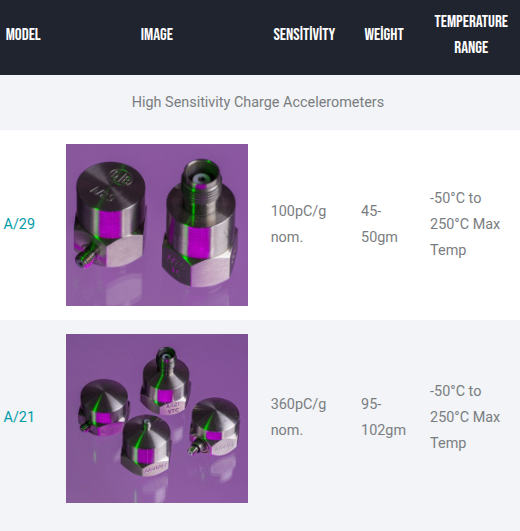

| High Sensitivity Charge Accelerometers | ||||
| A/29 |  | 100pC/g nom. | 45-50gm | -50°C to 250°C Max Temp |
| A/21 |  | 360pC/g nom. | 95-102gm | -50°C to 250°C Max Temp |
| Model | Image | Sensitivity | Weight | Temperature Range |
|---|---|---|---|---|

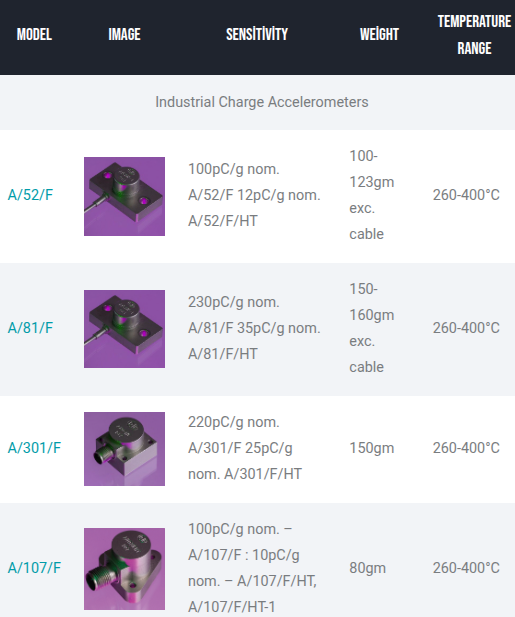

| Industrial Charge Accelerometers | ||||
| A/52/F |  | 100pC/g nom. A/52/F 12pC/g nom. A/52/F/HT | 100-123gm exc. cable | 260-400°C |
| A/81/F | | 230pC/g nom. A/81/F 35pC/g nom. A/81/F/HT | 150-160gm exc. cable | 260-400°C |
| A/301/F |  | 220pC/g nom. A/301/F 25pC/g nom. A/301/F/HT | 150gm | 260-400°C |
| A/107/F |  | 100pC/g nom. – A/107/F : 10pC/g nom. – A/107/F/HT, A/107/F/HT-1 | 80gm | 260-400°C |
| Model | Image | Sensitivity | Weight | Temperature Range |
|---|---|---|---|---|
| General Purpose Charge Accelerometers | ||||
| A/23/E |  | 8pC/g nom. | 3.4-4.9gm | -55°C to 250°C Max Temp |
| A/22 |  | 26pC/g nom. | 12gm | -55°C to 250°C Max Temp |
| A/20 |  | 30pC/g nom. | 12.5-27gm | (-71°C opt) -55°C to 250°C Max Temp |
| Model | Image | Sensitivity | Weight | Temperature Range |
|---|---|---|---|---|
| Seismic / Micro G Charge Accelerometers | ||||
| A/600 |  | 1.2nC/g nom. | 114.5gm | -50°C to 250°C Max Temp |
| A/800 |  | 9nC/g nom. | 400-429gm | -50°C to 250°C Max Temp |
