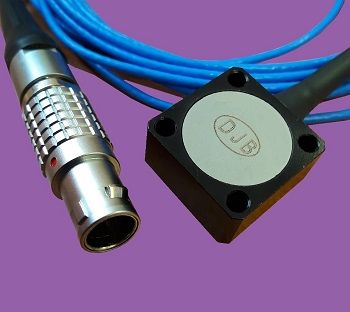

AM serisi ivmeölçerler, DC (0Hz) ve üzeri düşük frekanslı titreşim ölçümünde test yapmak için MEMS (mikro elektro mekanik sistem) DC yanıt voltajı çıkış cihazlarıdır. Her biri değişken kapasitans tasarımına sahip tek eksenli, çift eksenli ve üç eksenli seçenekler mevcuttur ve DJB DCM-03 MEMS sinyal koşullandırma ünitesine uyacak şekilde 7 pinli konnektörle donatılmış 2 m entegre kabloyla veya alternatif olarak çıplak kablolarla mevcuttur.
Yüksek hassasiyetin gerekli olduğu düşük seviyeli titreşim dahil düşük frekanslı titreşim uygulamaları için idealdir.
DC tepkisini ölçebilme yetenekleri nedeniyle sabit yerçekimi uygulamasını ölçmek için de kullanılabilirler.
| Model | Image | Sensitivity | Weight | Temperature Range | G Range |
|---|---|---|---|---|---|

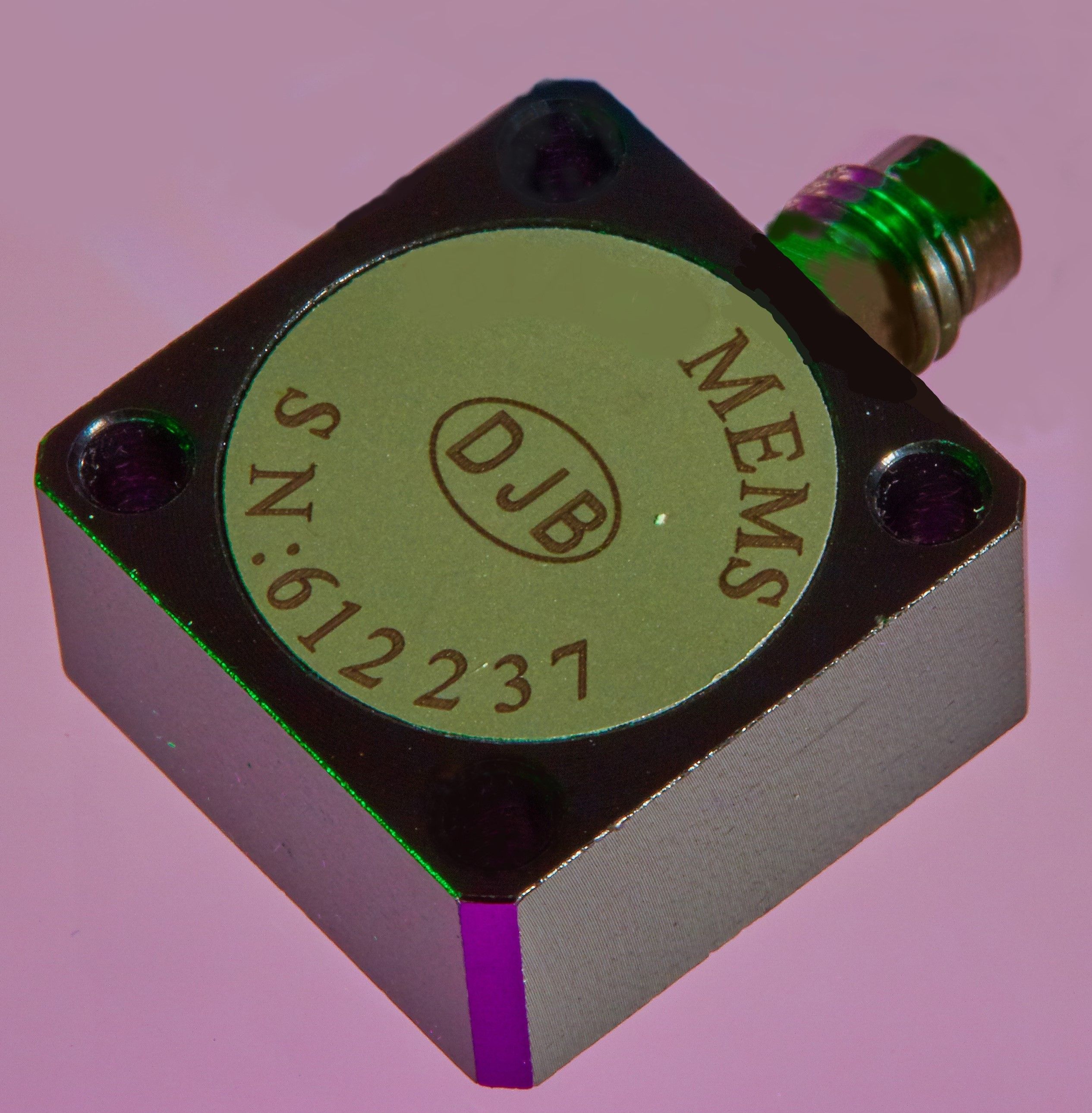

| DC MEMS Monoaxial Accelerometers – Connector | |||||
| AM/2.1000C |  | 1000mV/g | 12gms | -40°C to 120°C | ± 2g |
| AM/2HR.1000C | | 1000mv/g | 12gms | -40°C to 120°C | ± 2g |
| AM/10.200C | | 200mV/g | 12gms | -40°C to 120°C | ± 10g |
| AM/10HR.200C | | 200mV/g | 12gms | -40°C to 120°C | ± 10g |
| AM/20.100C | | 100mV/g | 12gms | -40°C to 120°C | ± 20g |
| AM/30HR.66C | | 66.7mV/g | 12gms | -40°C to 120°C | ± 30g |
| AM/50.40C | | 40mV/g | 12gms | -40°C to 120°C | ± 50g |
| AM/50HR.40C | | 40mV/g | 12gms | -40°C to 120°C | ± 50g |
| AM/100.20C | | 20mV/g | 12gms | -40°C to 120°C | ± 100g |
| AM/100HR.20C | | 20mV/g | 12gms | -40°C to 120°C | ± 100g |
| AM/200.10C | | 10mV/g | 12gms | -40°C to 120°C | ± 200g |
| AM/200HR.10C | | 10mV/g | 12gms | -40°C to 120°C | ± 200g |
| Model | Image | Sensitivity | Weight | Temperature Range | G Range |
|---|---|---|---|---|---|
| DC MEMS Biaxial Accelerometers – Connector | |||||
| AMB/2.1000C | | 1000mV/g | 18gms | -40°C to 120°C | ± 2g |
| AMB/2HR.1000C | | 1000mV/g | 18gm | -40°C to 120°C | ± 2g |
| AMB/10.200C | | 200mV/g | 18gms | -40°C to 120°C | ± 10g |
| AMB/10HR.200C | | 200mV/g | 18gms | -40°C to 120°C | ± 10g |
| AMB/20.100C | | 100mV/g | 18gms | -40°C to 120°C | ± 20g |
| AMB/30HR.66C | | 66.7mV/g | 18gms | -40°C to 120°C | ± 30g |
| AMB/50.40C | | 40mV/g | 18gms | -40°C to 120°C | ± 50g |
| AMB/50HR.40C | | 40mV/g | 18gms | -40°C to 120°C | ± 50g |
| AMB/100.20C | | 20mV/g | 18gms | -40°C to 120°C | ± 100g |
| AMB/100HR.20C | | 20mV/g | 18gms | -40°C to 120°C | ± 100g |
| AMB/200.10C | | 10mV/g | 18gms | -40°C to 120°C | ± 200g |
| AMB/200HR.10C | | 10mV/g | 18gms | -40°C to 120°C | ± 200g |
| Model | Image | Sensitivity | Weight | Temperature Range | G Range |
|---|---|---|---|---|---|
| DC MEMS Monoaxial Accelerometers – Integral Cable | |||||
| AM/2.1000 |  | 1000mV/g | 12gms | -40°C to 120°C | ± 2g |
| AM/2HR.1000 | | 1000mV/g | 12gms | -40°C to 120°C | ± 2g |
| AM/10.200 | | 200mV/g | 12gms | -40°C to 120°C | ± 10g |
| AM/10HR.200 | | 200mV/g | 12gms | -40°C to 120°C | ± 10g |
| AM/20.100 | | 100mV/g | 12gms | -40°C to 120°C | ± 20g |
| AM/30HR.66 | | 66.7mVg | 12gms | -40°C to 120°C | ± 30g |
| AM/50.40 | | 40mV/g | 12gms | -40°C to 120°C | ± 50g |
| AM/50HR.40 | | 40mV/g | 12gms | -40°C to 120°C | ± 50g |
| AM/100.20 | | 20mV/g | 12gms | -40°C to 120°C | ± 100g |
| AM/100HR.20 | | 20mV/g | 12gms | -40°C to 120°C | ± 100g |
| AM/200.10 | | 10mV/g | 12gms | -40°C to 120°C | ± 200g |
| AM/200HR.10 | | 10mV/g | 12gms | -40°C to 120°C | ± 200g |
| Model | Image | Sensitivity | Weight | Temperature Range | G Range |
|---|---|---|---|---|---|
| DC MEMS Biaxial Accelerometers – Integral Cable | |||||
| AMB/2.1000 | | 1000mV/g | 18gms | -40°C to 120°C | ± 2g |
| AMB/2HR.1000 | | 1000mv/g | 18gms | -40°C to 120°C | ± 2g |
| AMB/10.200 | | 200mV/g | 18gm | -40°C to 120°C | ± 10g |
| AMB/10HR.200 | | 200mV/g | 18gm | -40°C to 120°C | ± 10g |
| AMB/20.100 | | 100mV/g | 18gms | -40°C to 120°C | ± 20g |
| AMB/30HR.66 | | 66.7mV/g | 18gms | -40°C to 120°C | ± 30g |
| AMB/50.40 | | 40mV/g | 18gms | -40°C to 120°C | ± 50g |
| AMB/50HR.40 | | 40mV/g | 18gm | -40°C to 120°C | ± 50g |
| AMB/100.20 | | 20mv/g | 18gms | -40°C to 120°C | ± 100g |
| AMB/100HR.20 | | 20mV/g | 18gms | -40°C to 120°C | ± 100g |
| AMB/200.10 | | 10mV/g | 18gms | -40°C to 120°C | ± 200g |
| AMB/200HR.10 | | 10mV/g | 18gms | -40°C to 120°C | ± 200g |
| Model | Image | Sensitivity | Weight | Temperature Range | G Range |
|---|---|---|---|---|---|
| DC MEMS Triaxial Accelerometer – Integral Cable | |||||
| AMT/2.1000 | | 1000mV/g | 30gm | -40°C to 120°C | ± 2g |
| AMT/2HR.1000 | | 1000mV/g | 30gm | -40°C to 120°C | ± 2g |
| AMT/10.200 | | 200mV/g | 30gm | -40°C to 120°C | ± 10g |
| AMT/10HR.200 | | 200mV/g | 30gm | -40°C to 120°C | ± 10g |
| AMT/20.100 | | 100mV/g | 30gm | -40°C to 120°C | ± 20g |
| AMT/30HR.66 | | 66.7mV/g | 30gms | -40°C to 120°C | ± 30g |
| AMT/50.40 | | 40mV/g | 30gms | -40°C to 120°C | ± 50g |
| AMT/50HR.40 | | 40mV/g | 30gms | -40°C to 120°C | ± 50g |
| AMT/100.20 | | 20mV/g | 30gms | -40°C to 120°C | ± 100g |
| AMT/100HR.20 | | 20mV/g | 30gms | -40°C to 120°C | ± 100g |
| AMT/200.10 | | 10mV/g | 30gms | -40°C to 120°C | ± 200g |
| AMT/200HR.10 | | 10mV/g | 30gms | -40°C to 120°C | ± 200g |
